The EKG Grid

Clinical Context

An EKG is not just a waveform; it is a precise mathematical plot. Before a clinician can diagnose an arrhythmia or a myocardial infarction, they must understand the standardized "map" upon which cardiac electricity is drawn. Misinterpreting the grid scale—such as failing to recognize a non-standard sweep speed or voltage setting—can lead to profound diagnostic errors, such as misidentifying a normal rhythm as tachycardia or missing the low voltage associated with a pericardial effusion.

Learner Objectives

Quantify Time (X-axis): Translate horizontal grid units into seconds and milliseconds at standard sweep speed (25 mm/sec).
Quantify Amplitude (Y-axis): Translate vertical grid units into millivolts (mV) at standard calibration (10 mm/mV).

Tool-Driven Exploration

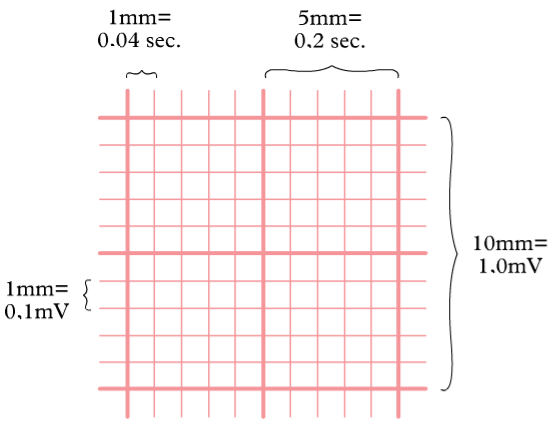

The Metric of Time: The Horizontal Axis

EKG paper moves through the machine at a standard "sweep speed" of 25 mm per second. Because the grid is fixed, we can use the boxes to measure time.
Small Box (1 mm): 0.04 seconds (40 ms).
Large Box (5 mm): 0.20 seconds (200 ms).
5 Large Boxes: 1 full second.
A typical 12 lead EKG is 10 seconds long.

The Metric of Voltage: The Vertical Axis

The vertical displacement represents the electrical magnitude (amplitude) of the cardiac vectors. Standard calibration is 10 mm per 1 mV. Many clinicians also reference in millimeters (mm).
Small Box: 0.1 mV or 1 mm
Large Box: 0.5 mV or 5 mm

Practice
You have now learned about the layout of the EKG grid. Use the tool below to practice counting boxes and understanding the measurements.

Measurement grid

Translate boxes into time and voltage without the waveform noise

Use the grid as a hands-on caliper. Tap once to anchor, then tap another box to highlight every small square between. The stats below explain what each span means for milliseconds and millivolts.

X axis (time)

Tap one or more boxes to show seconds

Y axis (voltage)

Select boxes to see millivolts

Key Points

The "Slow Paper" Trap: If the EKG sweep speed was accidentally set to 50 mm/sec (double speed), how would a normal heart rate appear to the eye? The heart is conducting at the same rate, but the paper is moving faster. So, on the paper, the "distance" between the complexes would be farter. So, it would appear slower.
The "Half Standard" Trap: If the voltage was set to 5 mm/mV (half-standard), an R-wave that is actually 2.0 mV would only look like 1.0 mV on the paper. Why is this dangerous? (Answer: You might miss signs of ventricular enlargement).
